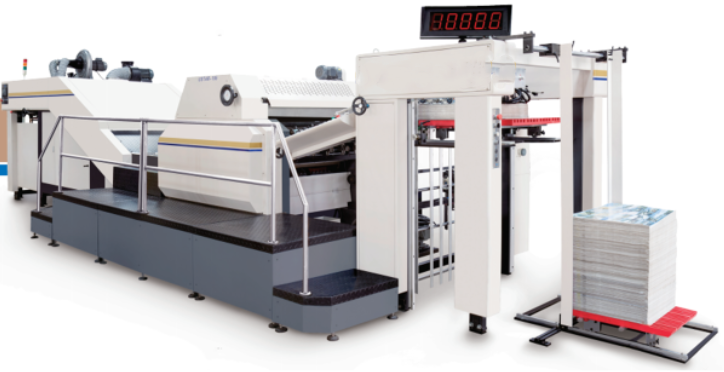

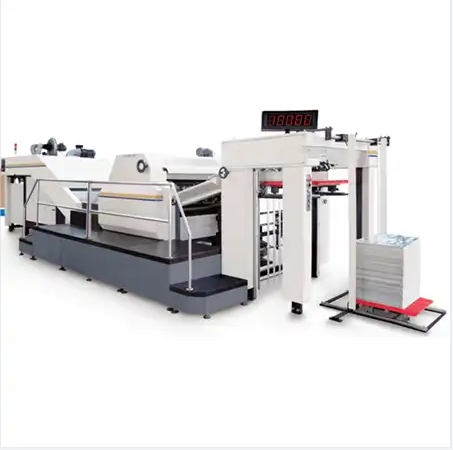

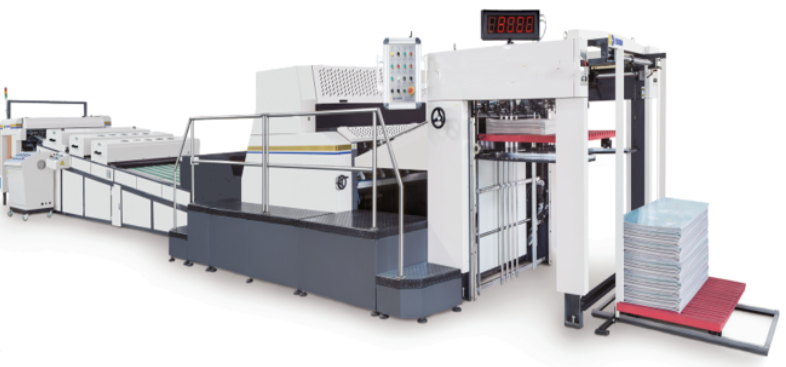

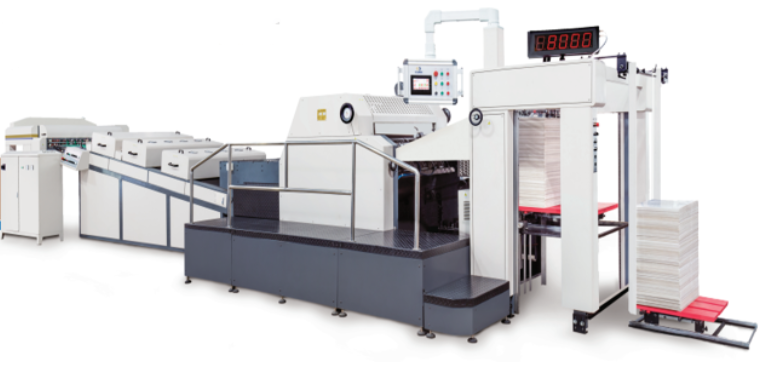

High-speed tissue paper UV coating machine
UST-105GS
UST-105GW
UST-145GW
Specification

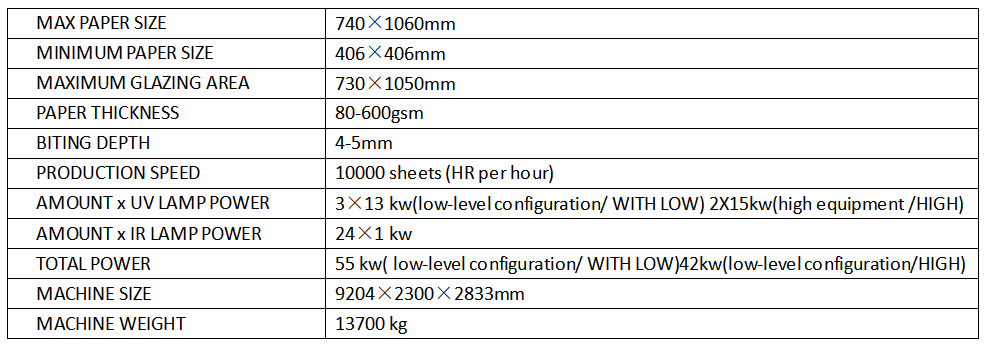

TECHNICAL PARANETER OF UST-105GS
TECHNICAL PARANETER OF UST-105GW

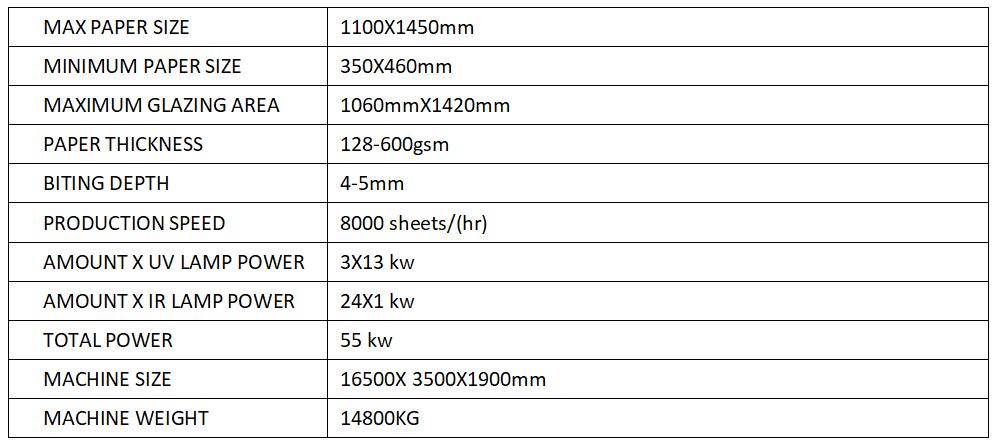

TECHNICAL PARANETER OF UST-145GW

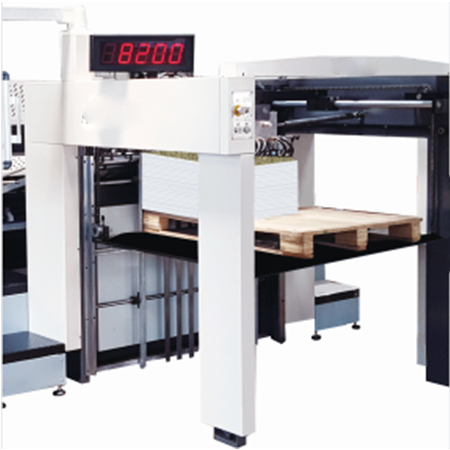

PAPER FEEDING SYSTEM
Adopting highr-speed maintenance-free paper feeding system,which can make a smooth feeding withboth thin or thick papers.
The electromechanical adjustable double sheet detection device,an abnormal paper feeding willcause an immediate shutdown. At the same time， the HMl will show the warning message，eliminatemalfunetions and then restart.

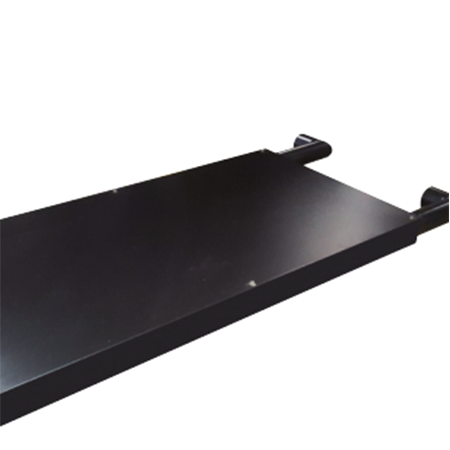

The feeding platform adopts stainless steel plate and vacuum absorption system， which can lowerstatic electricity caused by friction and help flattening papers.
The side and front gauge control papers feeding direction and make sure it feeds accurately.Ifany paper fed in a wrong direction or out of paper，the machine will automatically shutdown andHMI will show the warning message，eliminate malfunctions and then restart.
HOST COATING SYSTEM
The application of downward swaying double-diameter roller transmission structure can makepaper delivered smoathly and fast.
The application of fast-clip device in coating roller can lead to a convenient loading.
Impression cylinder and gravure cylinder are pressed and clutched in pneumatic methods，userscan choose manually or automatically move in or move out the trunk.
This machine uses ceramic netlike roller to deliver oil, which can lead to a more delicatecoating; oil is started delivering in the front of gravure cylinder which created a large andconvenient loading space.
5.The host equipped with safety devices，machine will be stopped if the safety door is open.

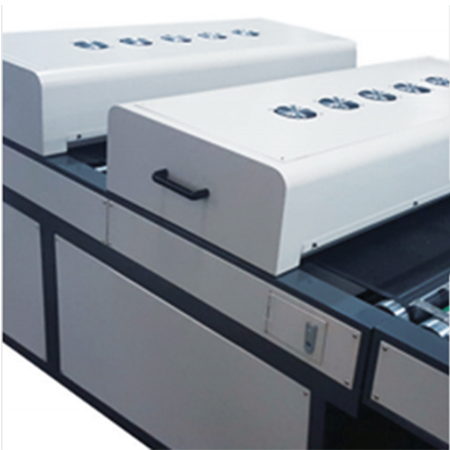

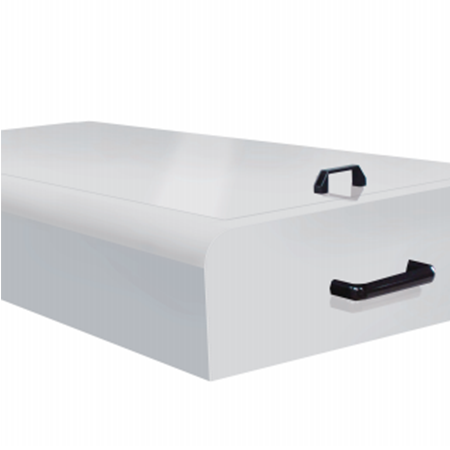

UV CURING SYSTEM
The system is combined with high-pressure mercury lamp，mirror reflector plate， electricalcontrol system and cooling & exhausting system.We also have automatic temperature controlsystem to ensure there is no deformation in our varnished products. The design of full/halfpower mercury lamp can realize half power working under out-paper condition， which can avoid.

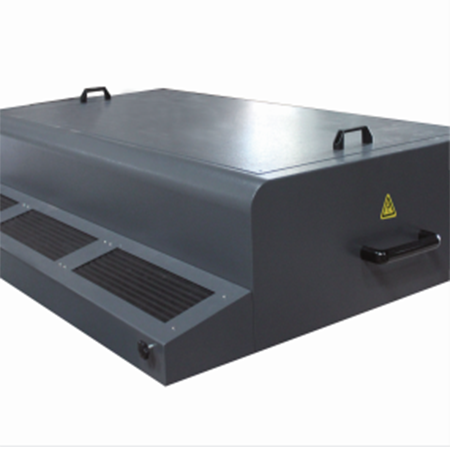

INFRARED CURING SYSTEM
Infrared drying system is used on waterO-based varnishing，it uses short wave to dry thosequick passed water-based products instantly，energy saving and safe.

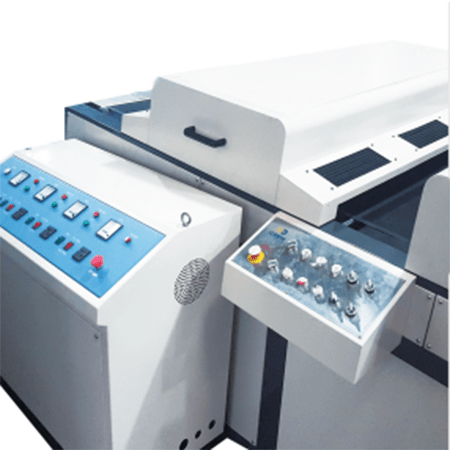

CONTINUOUSLY VARIABLE CURING SYSTEM(OPTIONAL)
Continuously variable curing system is our company’s newly developed high-end curing device.This device can adjust UV power continuously with the changing of feeding speed. The devicewill turn itself in zero power while the machine is out of paper，it is safe，efficient and.

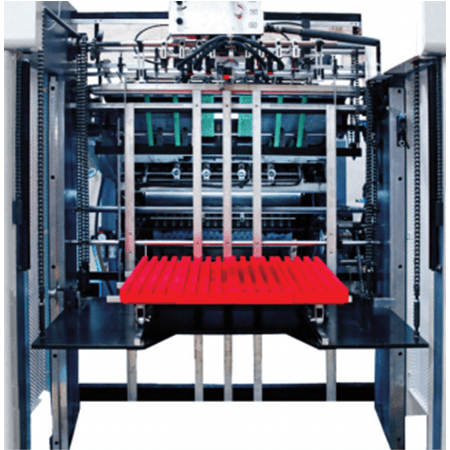

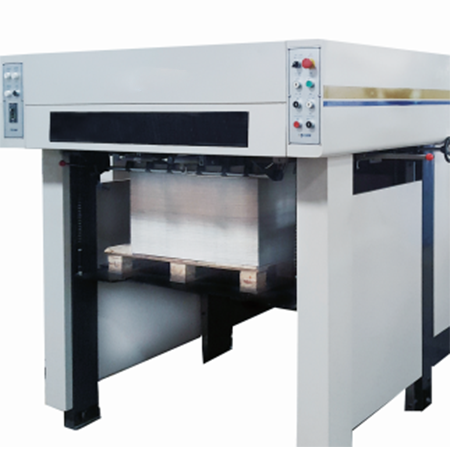

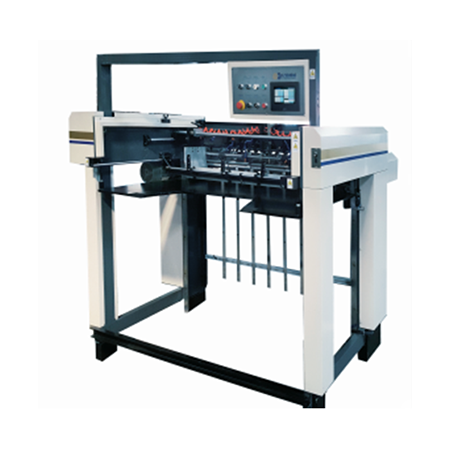

PAPER DELIVERY SYSTEM
The drag-open type of design can give operators great convenience.
Equipped with adjustable paper suction structure， both thick or thin papers can be slowly andplacidly collected in the system, which can letter papers smoothly collected in uniform andkeep it away from crush damage.
Equipped with pneumatic sampling device，the whole spot check process are easy and quick,andkeeping safety problems away from happening.
