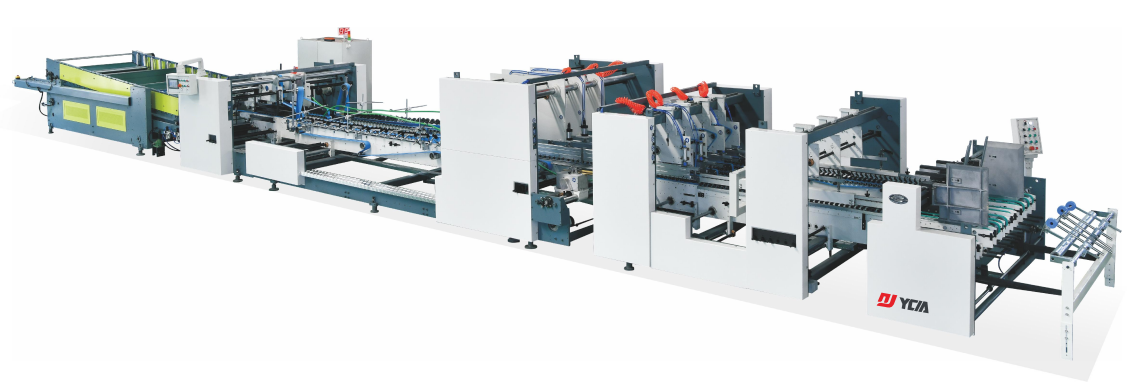

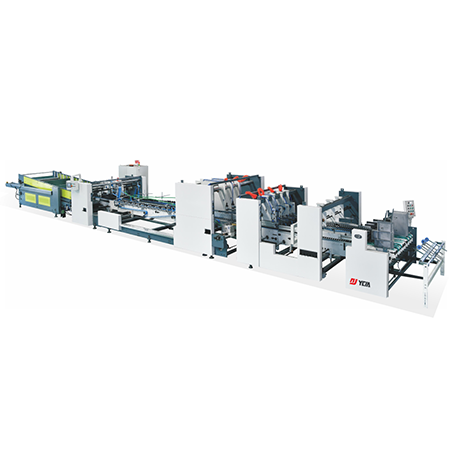

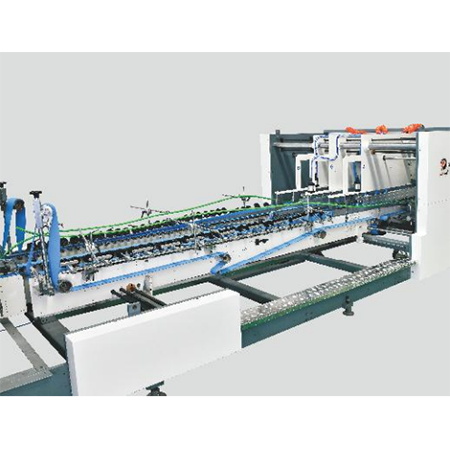

Two Piece Splicing Gluing Box Machine

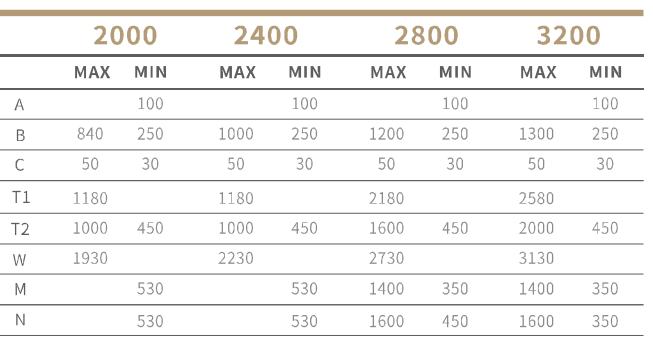

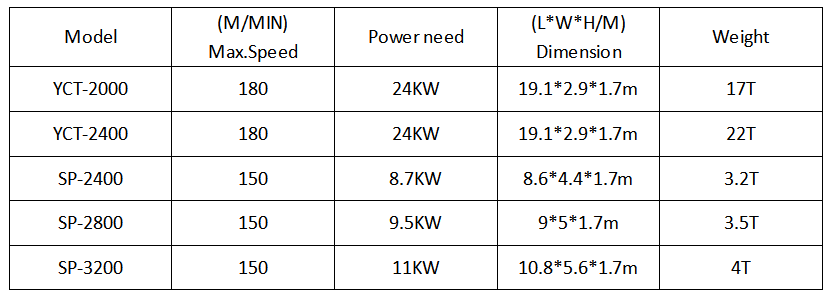

Specification
Feeder
Independent servo motors individually placed in operation side and transmission side, coordinated with paper-feeding suction belt assembly, free shift the production mode between two-pieces and single-piece. Easily access to the changing-be Its. The independent vibrating motor fully assists the feeding-paper performance. The whole paper-feeding gauges and left/right side baffles are adjustable upper and down, this saves a lot of time on adjustment and job change-over.
Trombone And Regesiter
Three-segment iype pressurization, benefit to re-press the two joints, the adjustable dapping-pad coordinated with conveying side jogger re-correct the paper board, keep the finished paper box without deformation before next procedure.

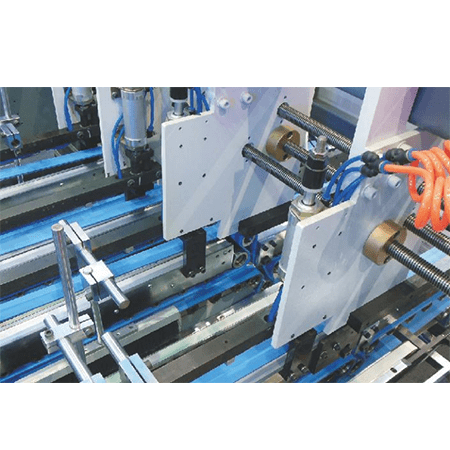

Two-pieces Jointombination section
The two-pieces joint combination unit drives via individual multi-servo motors, consists of two-pieces feeding s^tem, aligning corrector, forming system, the first gluing subsystem, carry out the complete two-pieces joint combination procedure. 4 sets special synchronization belts for positioning, transmit the paper boards by push-gauges, {the pushing-gauges can be shifted according to various paper board length, the row of 2-, 3-, 4-pushing gauges are available for different production mode ), so to remain the accurate synchronization of two-pieces production. Both of hot melt and cold glue are applied for positioning, accurately executes the joint combination under control of photnelectronic.

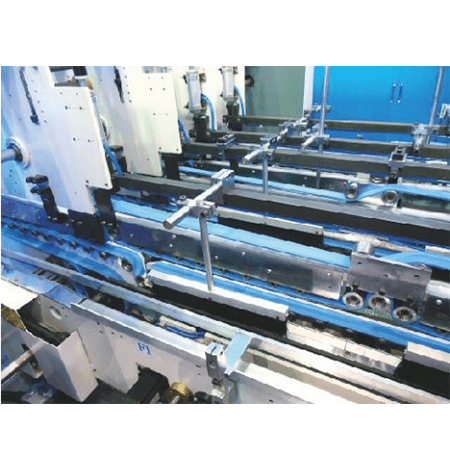

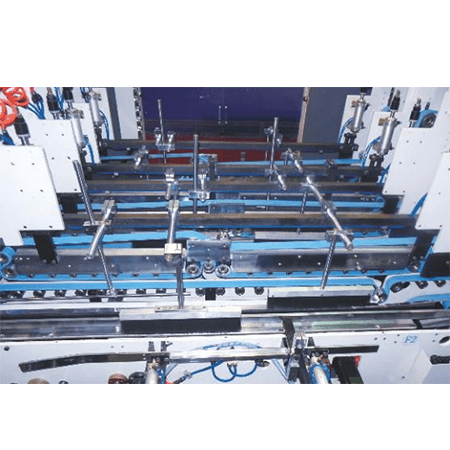

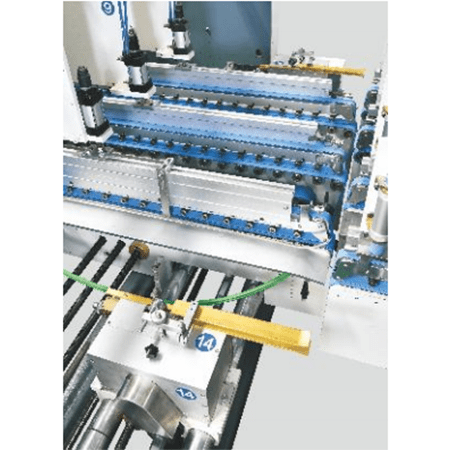

Folding
Equipped with unique paper aligning corrector, is capable to carry on the second pre-impression procedure following with the belt angle while paper pass through self-folding section, prevent the in correct gluing due to the dried paper and worse creasing-line paper. The 4 baffles design of self-folding, independent motors drive the left/right side turning-belts, the running speed of turning-belts are adjustable via operating the digital display, this sufficiently reduces the ?trumpet mouth? oFjoint paper box.

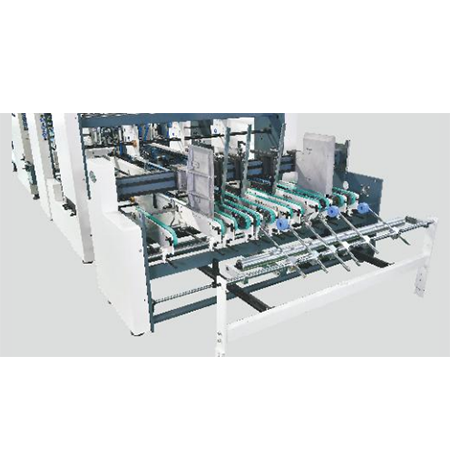

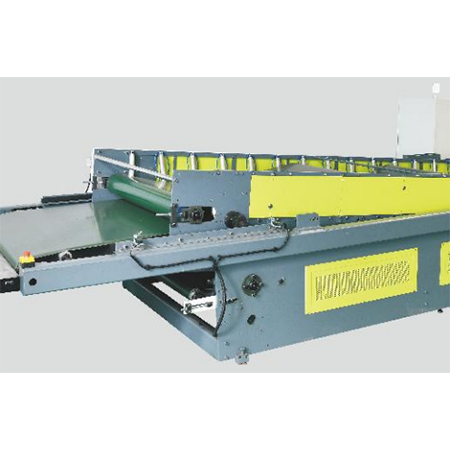

Conveyor
The upper/bottom independent design, mounted with softness appropriate belts, prevent the products no to be distorted during conveying paper. The whole conveyor is moveable to forwa nd/backwa rd and upper/down, make the different products with same even pressurization. The conveying speed is adjustable following with main mechanism speed. Photosensor for automatic counting while auto conveying paper board.
Controlling Section
The whole machine is controlled by industrial Computer, drives via multi-servo motors through control of FPGA card, comprise the excellent system for machine running accuracy and efficiency. Optional memory store system, which enable to recall the relative parameters from last production data, and pre-set new production parameters if need, then starr to produce immediately, th is is greatly helpful fora new job change- over, shorten the start-up time and improve the production efficiency. Optional special figure memory system, just simply orderthe request box pattern from box shape menu on PC interface, and input the related size data, all data will store in HD and will carry out the automatic adjusting program to every unit, after these data is processed automatically by PC and transferred to the central control unit, this means operator cou Id directly start to produce, but unnecessary more time on readjusting machine, or make slight modification via re-call memory text.

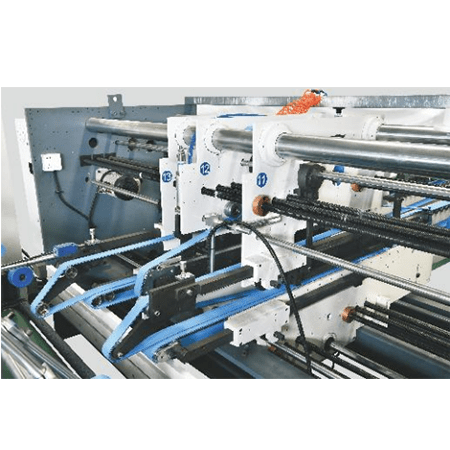

Gluing Section
Combination sticky point adopt imported original glue system and hot glue fixed position together with cold glue molding,Upper paste tank adopts the structure with 2-sets mechanical gluing rollers, the accurate adjustment is capable to carry out via adjustment of either left side and right side or upside and downsideThe setting and remove of lower paste tank is convenient for the operator to clean all parts of the tank.
