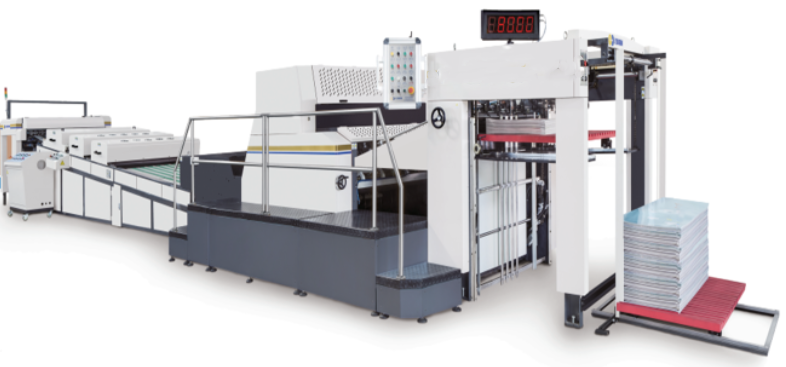

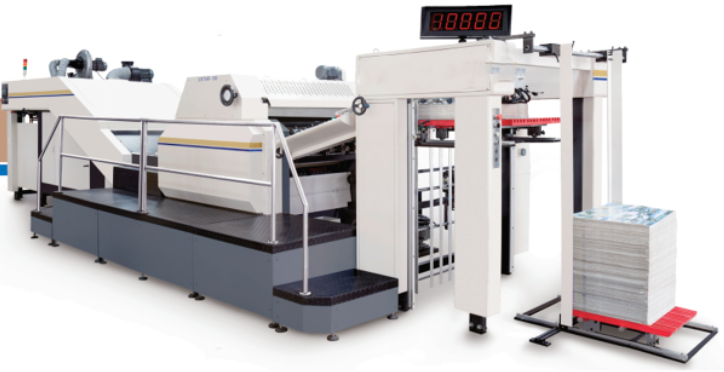

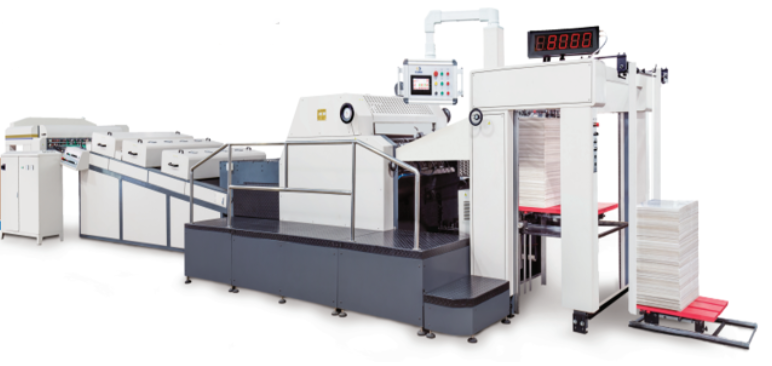

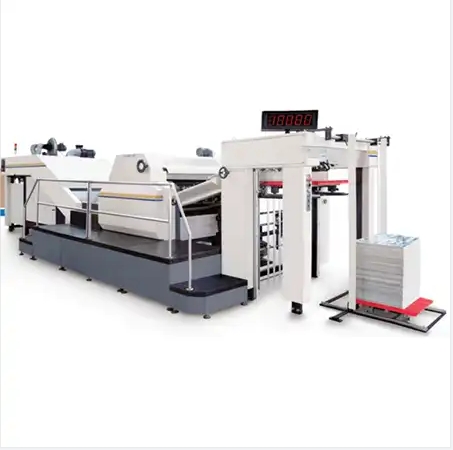

High-speed environmental protection plastic replacement oil machine
UST-105GS
UST-105GW
UST-145GW
Specification

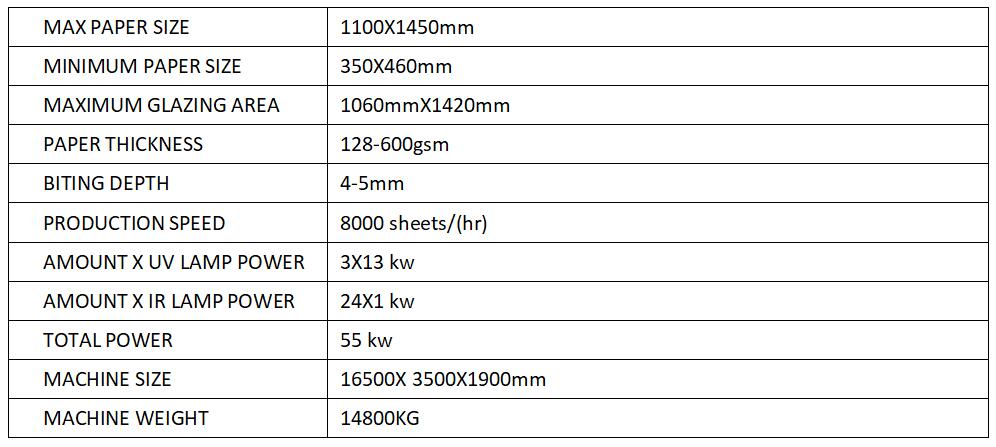

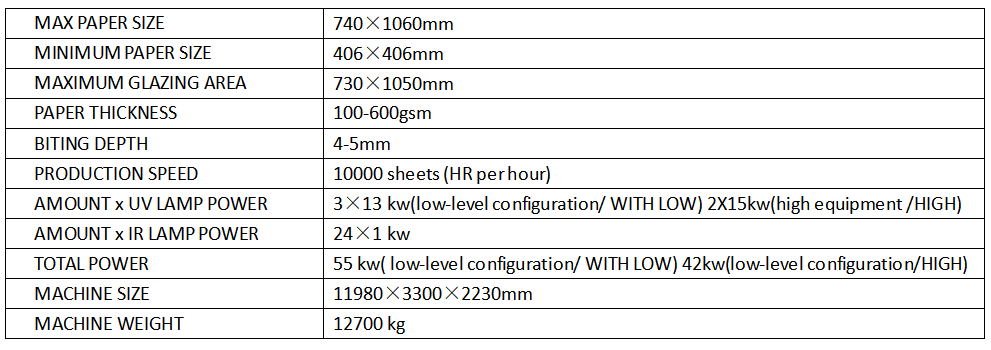

TECHNICAL PARANETER OF UST-105GS
TECHNICAL PARANETER OF UST-105GW
TECHNICAL PARANETER OF UST-145GW

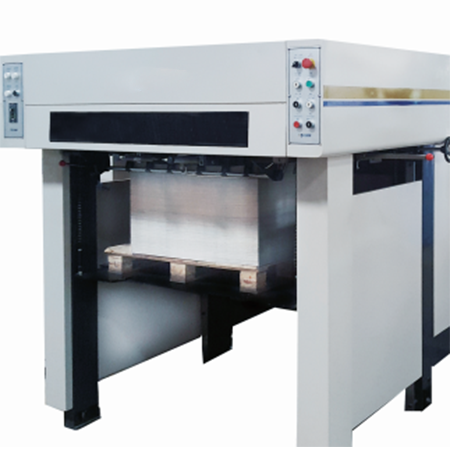

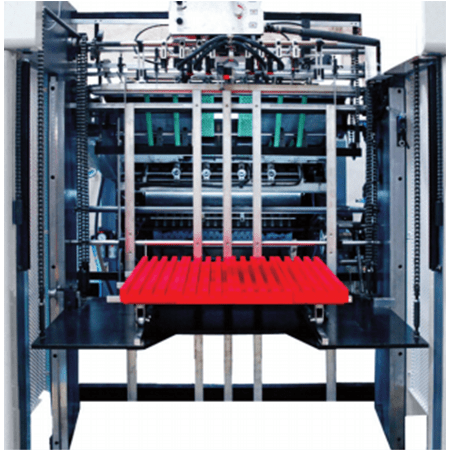

PAPER FEEDING SYSTEM
Adopting highr-speed maintenance-free paper feeding system,which can make a smooth feeding withboth thin or thick papers.
The electromechanical adjustable double sheet detection device,an abnormal paper feeding willcause an immediate shutdown. At the same time， the HMl will show the warning message，eliminatemalfunetions and then restart.

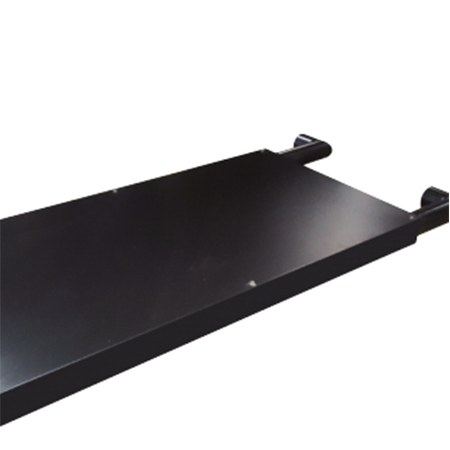

The feeding platform adopts stainless steel plate and vacuum absorption system， which can lowerstatic electricity caused by friction and help flattening papers.
The side and front gauge control papers feeding direction and make sure it feeds accurately.Ifany paper fed in a wrong direction or out of paper，the machine will automatically shutdown andHMI will show the warning message，eliminate malfunctions and then restart.

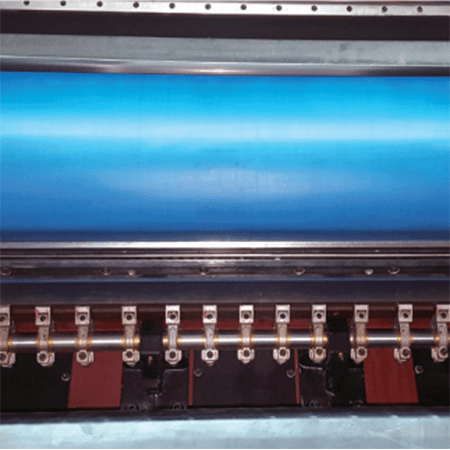

HOST COATING SYSTEM
The application of downward swaying double-diameter roller transmission structure can makepaper delivered smoathly and fast.
The application of fast-clip device in coating roller can lead to a convenient loading.
Impression cylinder and gravure cylinder are pressed and clutched in pneumatic methods，userscan choose manually or automatically move in or move out the trunk.
This machine uses ceramic netlike roller to deliver oil, which can lead to a more delicatecoating; oil is started delivering in the front of gravure cylinder which created a large andconvenient loading space.
5.The host equipped with safety devices，machine will be stopped if the safety door is open.

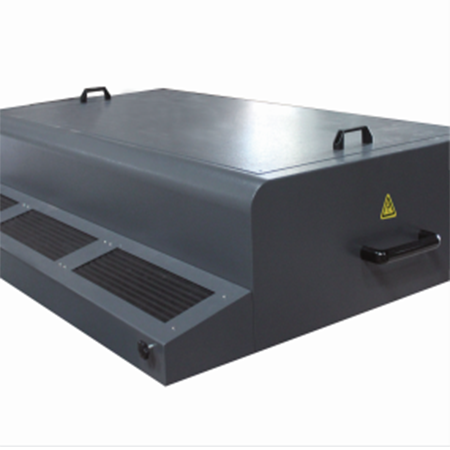

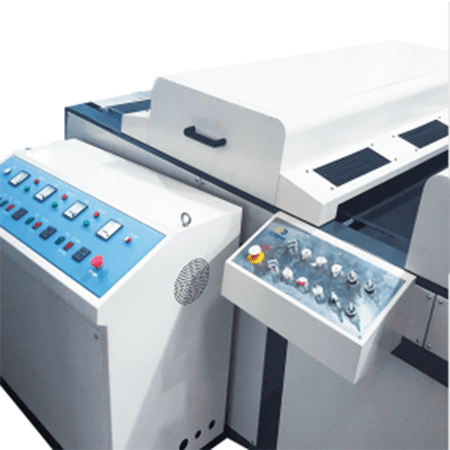

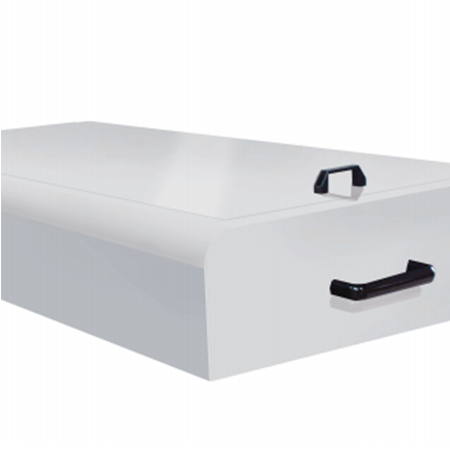

UV CURING SYSTEM

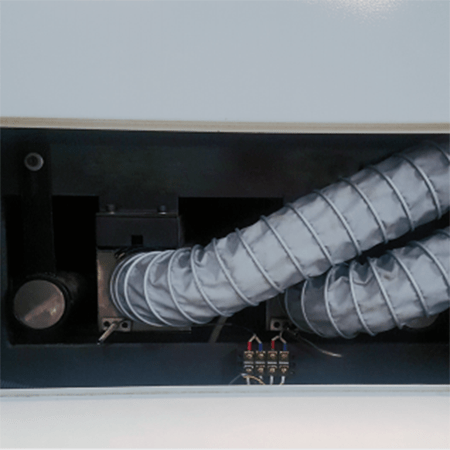

The system is combined with high-pressure mercury lamp，mirror reflector plate， electricalcontrol system and cooling & exhausting system.We also have automatic temperature controlsystem to ensure there is no deformation in our varnished products. The design of full/halfpower mercury lamp can realize half power working under out-paper condition， which can avoid.

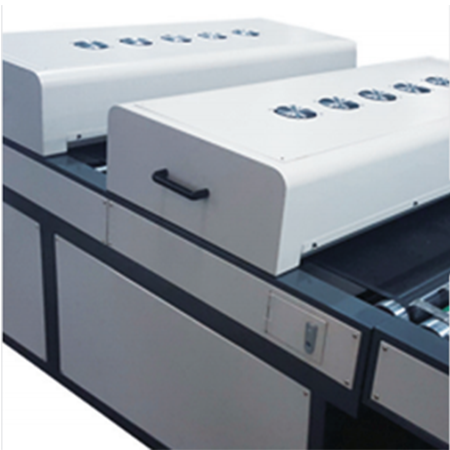

INFRARED CURING SYSTEM
Infrared drying system is used on waterO-based varnishing，it uses short wave to dry thosequick passed water-based products instantly，energy saving and safe.
CONTINUOUSLY VARIABLE CURING SYSTEM(OPTIONAL)
Continuously variable curing system is our company’s newly developed high-end curing device.This device can adjust UV power continuously with the changing of feeding speed. The devicewill turn itself in zero power while the machine is out of paper，it is safe，efficient and.

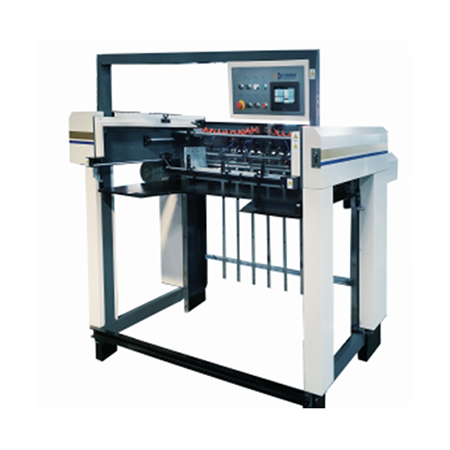

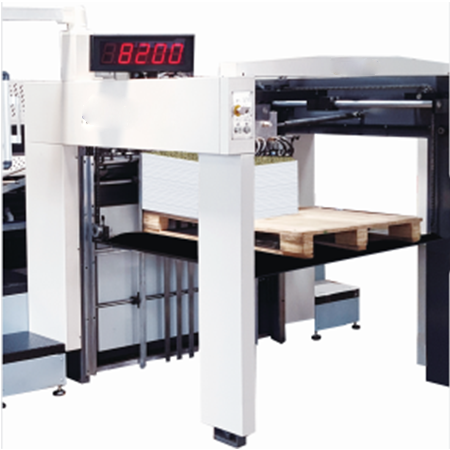

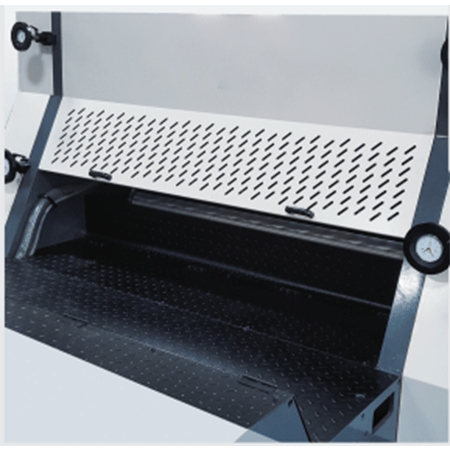

PAPER DELIVERY SYSTEM
The drag-open type of design can give operators great convenience.
Equipped with adjustable paper suction structure， both thick or thin papers can be slowly andplacidly collected in the system, which can letter papers smoothly collected in uniform andkeep it away from crush damage.
Equipped with pneumatic sampling device，the whole spot check process are easy and quick,andkeeping safety problems away from happening.
FAQ
Q: Where is this automatic glazing machine mainly used?
A: This glazing equipment is water-based/oil-based dual-purpose high-speed glazing equipment. The machine uses rubber blanket or resin plate as the plate material for comprehensive or partial glazing. Cavity type hanging coating system ensures uniform glazing without oil squeeze and accurate local glazing overprinting. Suitable for medicine bag, wine box, cosmetic box, electronics, food, boutique gift box, color box, card tag, beverage, daily necessities, books and periodicals, advertising, color box, plastic film and other high-end printed matter partial overprinting or overall glazing, improve the quality of printed matter, increase the aesthetic feeling. The whole machine has safety protection device and humanized operating system to ensure the operator's personal safety and ease. Q: Which payment methods do you accept?
A:Paypal or TT are the most popular, but we can follow your payment terms.
Q: Is your after-sales service guaranteed?
A: We are a professional manufacturer of automatic printing and packaging equipment. The company has automation control and packaging machinery design and manufacturing experience team, for many years in view of the needs of our customers, constantly upgrading to provide strong protection. The company has been adhering to the quality assurance, sustainable management, good service, excellence, customer first, innovation as the purpose, committed to providing customers with quality products and services, products with superior performance, at the same time also has perfect service system, the effective solution and fast after-sales service has become the embodiment of company's core values.
Q: How about your delivery service?
A: The transportation can be arranged by us, as we have a long-term cooperation with the logistics company, or you can choose any mode of transportation you like.
Q: What is your best service?
A:1) Our businesses are familiar with the complete transaction process
2) As a large professional supplier, the process of working with us is very easy
3) Quick reply within 24 hours, you can push your order progress at any time
12) To ensure reliable production and credible after-sales service, to solve your worries
13) Professional technical team to create exclusive solutions for your needs
