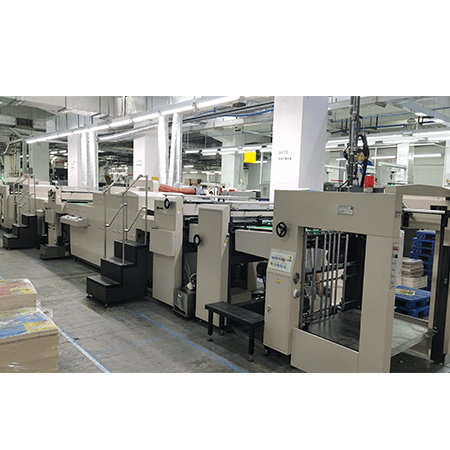

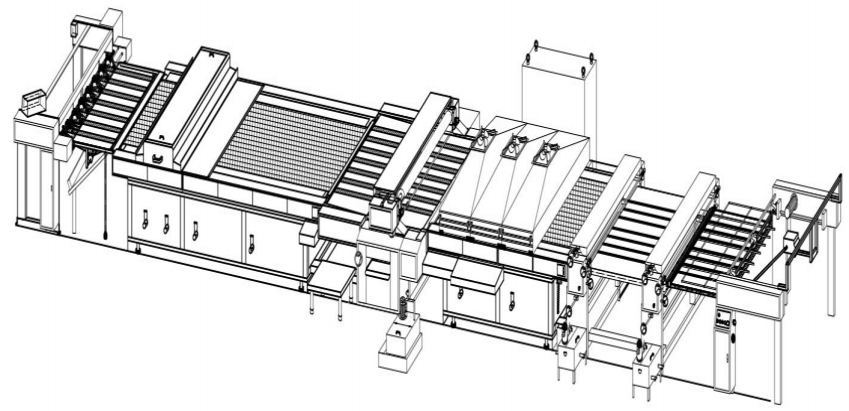

High-speed paper product comprehensive oiling machine
Product feature
The machine applies ceramic mesh roller and cavity scraper to the bottom oil and UV coating base, which can reduce the UV coating by 40% and obtain better flatness and brightness.
new string type bottom roll scraper system can solve the two-sided UV glazing, oil film, the rod, and other issues .
The latest high speed model, the production speed can be up to 8000 pieces per hour, and can do UV oil or water varnish.

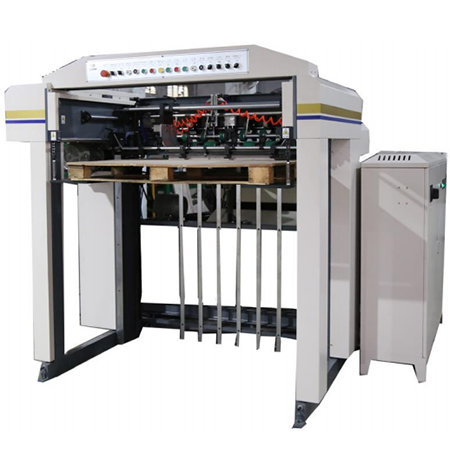

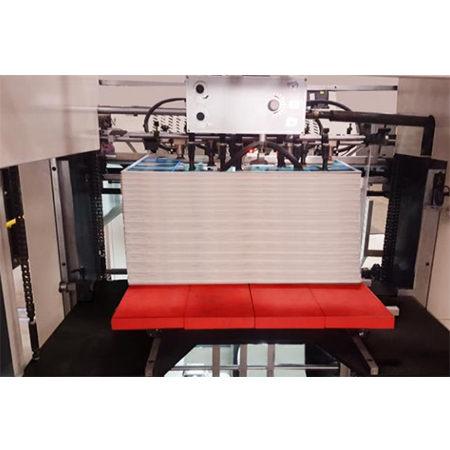

Feeding system
Adopt high speed four - suction and four - delivery FEta without maintenance, controlled by CAM with simple structure. Do not need lubrication, not easy to wear. Centralized adjustment, easy to adjust the relative position of feida and paper. The double sheet controller can be used as double sheet detection and lifting protection device of paper loading platform.

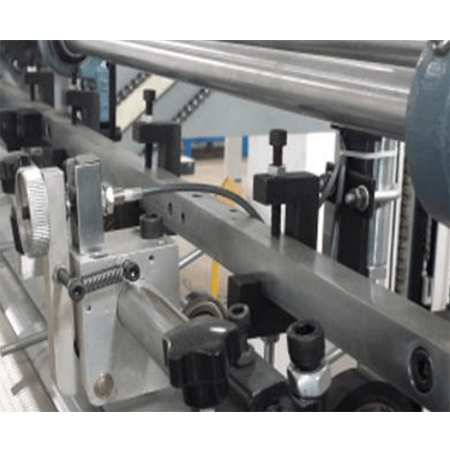

Double sheet detection system for paper feeding section
When the system detects double sheets of paper, the system will automatically stop feeding and alarm the fault. So as to effectively protect the damage of the printing plate and reduce the appearance of defective products, to ensure the safety and stability of the whole production process .
In addition to the powder unit
The steel bar electric heating system automatically heats the surface of the steel bar to the desired temperature, and then the dust is adsorbed on the surface of the roller through the pressure between the rollers. The dust adsorbed on the surface of the roller is scraped off by the scraper. (The scraper works in the transverse motion mode, and its advantage is that it can remove the residual dust of the roller more effectively. Avoid the drum to transfer the excess dust to the paper again) and then the dust blown down by the suction system into the integrated bucket for centralized treatment, so as to achieve the effect of manual removal. Remarks: (The original Taiwan model does not have such a transverse moving scraper design, so the dust removal effect on the surface of the roller is not complete. The traditional model needs manual removal when cleaning the dust of the scraper, but our model does not need manual cleaning, so the whole production will prevent the occurrence of safety accidents such as involvement and slip injury).
Bottom oil coating system
1.Adopt synchronous arc belt drive, make the equipment run smoothly, low noise .

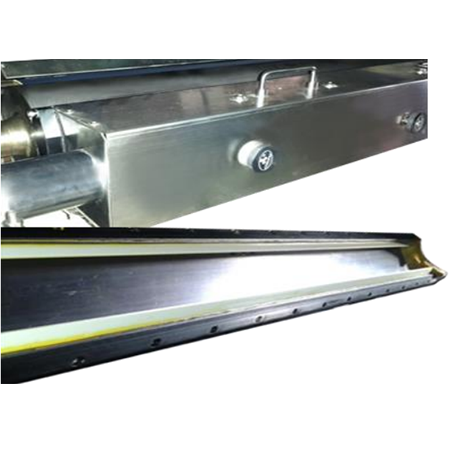

2.Using ceramic roller with cavity scraper coating, so that the coating effect is more uniform and 2.delicate. Reduce the volatilization of solvent to avoid the splashing of consumables when the bottom coating, affecting the quality of products and the clean machine;
3.The lower scraper adopts plastic scraper to reduce the damage and wear of the lower roller;
4.The coating roller adopts the fast roll change mode, which can reduce the labor intensity of roll change and improve the work efficiency. Combined with the transverse motion scraper, make the whole coating system more uniform and smooth. (here the design of transverse sports scraper has many advantages; (1) the bottom oil coating is uniform and delicate, reducing the appearance of cots coating lines. (2) It can reduce the appearance of ink rod when coating products with high requirements such as dumb oil and touch. Taiwan models do not have this configuration.
UV coating system
◆ Adopt synchronous arc belt drive, make the equipment run smoothly, low noise;
◆ The ceramic roller with cavity scraper coating, so that the coating effect is more uniform and delicate. Reduce the volatilization of solvent to avoid the splashing of consumables when the bottom coating, affecting the quality of products and the clean machine;
◆ Plastic scraper is used to reduce the damage and wear of the lower roller;
◆ Coating roller adopts fast roll change mode, reduce the labor intensity of roll change, improve work efficiency; Combined with the transverse moving scraper, make the whole coating system more uniform and smooth. (here the design of transverse sports scraper has many advantages; (1) the bottom oil coating is uniform and delicate, reducing the appearance of cots coating lines. (2) It can reduce the appearance of ink rod when coating products with high requirements such as dumb oil and touch. Taiwan models do not have this configuration.

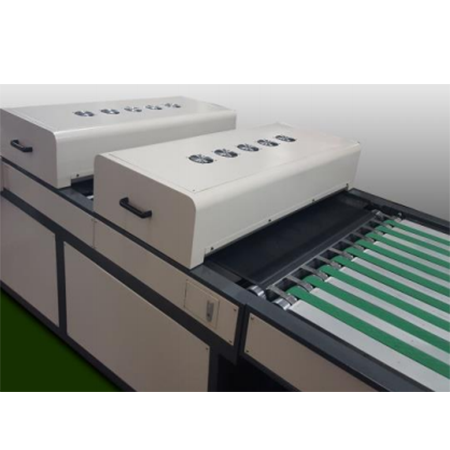

Infrared curing system
The drying system uses IR short wave lamp and hot air circulation design. The IR system is divided into three groups, which are composed of 24 1KW shortwave tubes, arranged in a slanting and crossing way, so that the curing effect is more balanced and the drying is more thorough. (When the conveyor belt does not work, the IR system will automatically close and automatically raise the lampshade to prevent fire.)

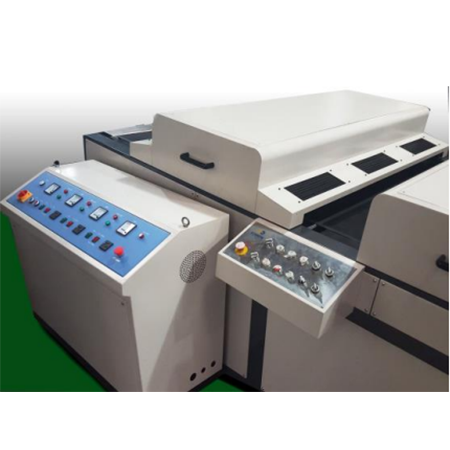

Stepless UV curing system
The non-pole UV curing system is a new high distribution device developed by our company. This device can automatically regulate the power of the lamp. The power can automatically adjust with the speed of the car, and the time of turning on the lamp is short. Safety, energy saving and high efficiency. (The Taiwan model is controlled by a traditional two-stage transformer, and the weak point of the lamp is slow. The conventional lamp turning time is 2-3 minutes. The surface temperature of the cured product is 10-15 degrees Celsius higher than that of our new stepless curing system, which is easy to cause deformation and color change of the paper.) (When the conveyor net belt is not working, the UV system will automatically close and automatically raise the lampshade to prevent the occurrence of fire.)
