Fully Upgraded CCD-5070 Vision-Aligned Screen Printing Machine Boosts High-Precision Automated Production

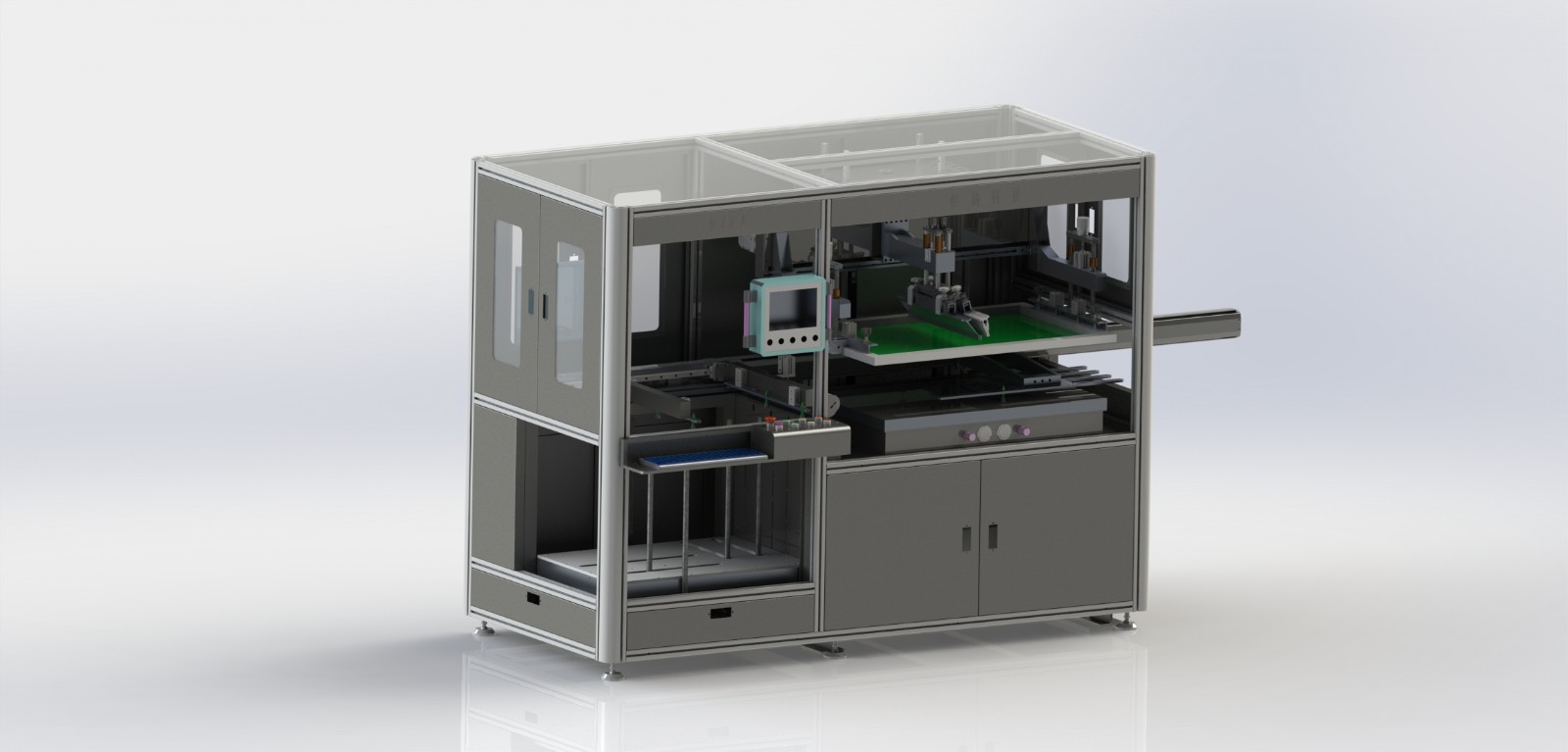

Hengyun Machinery has recently launched the fully automatic CCD-5070 vision-aligned screen printing machine. Designed for the sheet material printing market, this machine addresses industry pain points associated with traditional screen printing—such as significant manual alignment errors, low yield rates, and high labor costs—by providing an efficient, stable, and automated solution for sectors including plastics, films, signage, and electronic panels.

The CCD-5070 features a maximum printing area of 500×700mm and is equipped with a high-definition CCD vision-based automatic alignment system, achieving high-precision registration accuracy of ±0.02–0.03mm. The machine automatically identifies registration marks to compensate for positional deviations in real-time, eliminating the need for repetitive manual alignment and significantly reducing technical skill requirements for operators. The equipment integrates the entire process—automatic loading, printing, and unloading—and utilizes a servo drive system to ensure smooth operation, uniform ink thickness, and stable, continuous mass production.

The machine features a touchscreen human-machine interface for simple parameter settings and supports the storage and recall of multiple process configurations. It is also equipped with safety protection devices to ensure operational safety. A single operator can manage the machine, effectively reducing labor requirements, boosting production efficiency, and minimizing material waste, thereby helping factories cut costs and increase productivity.

This model is compatible with various sheet materials such as PET, PVC, acrylic, and thin metal sheets, making it widely applicable in fields including signage printing, membrane switches, decorative panels, and electronic component processing. Hengyun Machinery remains committed to meeting customer production needs and continuously optimizing equipment performance, delivering reliable automated screen printing solutions to both domestic and international clients.
