Flatbed automated screen printing loading system has faults what are the solutions

2023-11-28 20:35:09

Flatbed automated screen printing loading system has faults what are the solutions

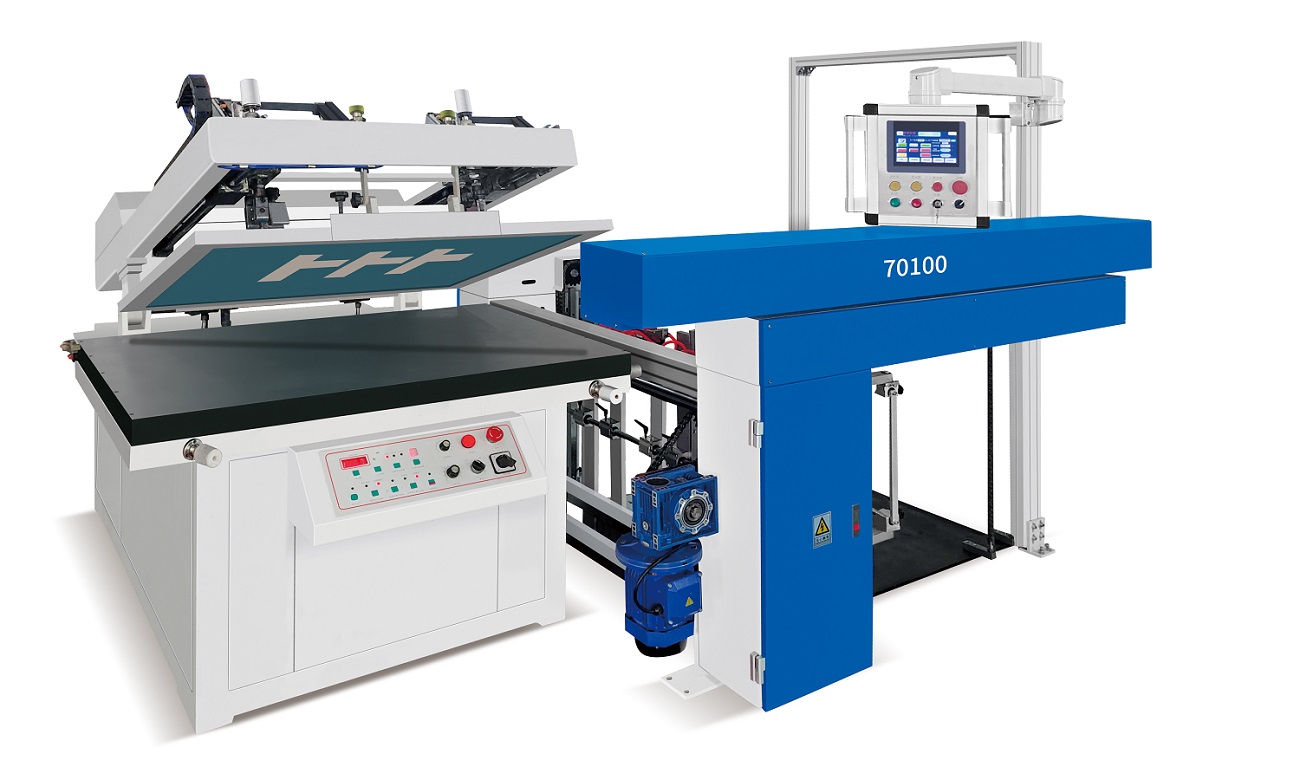

Flatbed automated screen printing loading system

First, the Flatbed automated screen printing loading system is prone to ink loss.

Flatbed automated screen printing loading system is easy to drop ink, this fault is because of the plate making negatives or the tanning table is not clean.

Solution:The produced web version has a lot of pinholes, resulting in the web version of the ink leakage during printing. If the ink leakage is not serious, it can be repaired with sealant or photopolymer adhesive, or can be sealed directly with tape paper.

The startup of the Flatbed automated screen printing loading system does not drop. This type of failure occurs when there is a fault or no sensing near the switch on the right side of the cross slide base, faulty switch selection, or damage to the interlocking point of the single-action switch.

Solution: Adjust the proximity switch sensing or replace the right side proximity switch, replace or repair the selector switch and single action switch.

Second, Flatbed automated screen printing loading system

Flatbed automated screen printing loading system can not start: this kind of failure is the upper and lower cylinder micro branch switch is normally closed, the joint can not pass or timer damage. Solution:Repair the micro switch or replace the timer.

Flatbed automated screen printing loading system does not move, the power light is on: the causes of such failures include the low voltage side of the fuse blown, no air source into the solenoid valve failure.

Solution: replace the low-pressure side fuse, check whether the pressure reaches 4-7kg/kg/cm, all the solenoid valve failure is very small, most of the connecting line is broken.

Flatbed automated screen printing loading system acts immediately without stepping on the pedal switch while working:Most of these failures are due to short circuit caused by damaged pedal switch or water ingress in the socket of the pedal switch, the other one is faulty manual start button switch.

Solution: Replace the switch, socket, button switch with a new one or disassemble and repair the related damaged parts.
