The principle and structure description of Fully Automatic Folder Gluer

The principle and structure description of Fully Automatic Folder Gluer

Fully Automatic Folder Gluer, which is an automated device. Its working principle is to transport the cardboard to the lower end of the block through the conveyor belt, to drive the restricted block to fix it through the cylinder, and fold inward after fixing. The band is transported, and the folding cardboard is placed in the guidance slot to transmit, and the cardboard in the back -end guidance slot is folded through the point -to -tone rod, and the tape is set on the surface of the folding cardboard for dot glue. After the replenishment is completed The folding cardboard is placed on the auxiliary pressure bar, and the folding board 2 is folded by the cardboard in the front -end guidance slot, so that the cardboard on the block and the cardboard on the auxiliary block can be better bonded, which greatly improves the efficiency of work efficiency At the same time, the quality of production has also reduced labor costs.

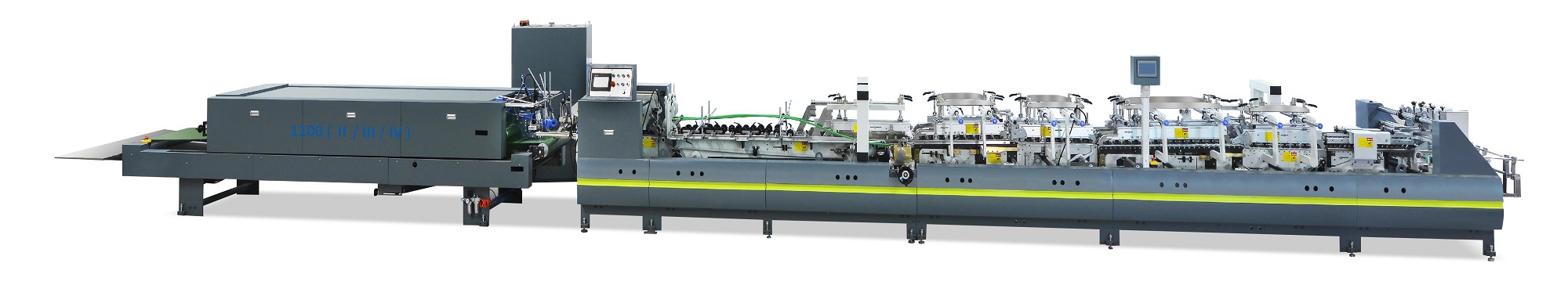

Fully Automatic Folder Gluer

The structure of Fully Automatic Folder Gluer includes a conveyor belt. The front and rear sides of the conveyor belt are set up from left to right from left to right. The guidance slot at the end, above the conveyor belt with a limited pressure block corresponding to the folding board 1 position, a cylinder component is set on the limited pressure block, and the front -end guidance slot is set with folding folding board 2, the guidance of the back end, the guidance of the back end There is a tattoo rod on the slot, and a bit of the head is set on the point of the point replenish rod.

Auxiliary pressure strips are set on the inner wall of the back -end guidance slot. There are pressure blocks on the inner wall of the folding board 2. When the folding board 2 folds inward, the block is corresponding to the auxiliary press.

The extension limit panel and folding board 1 at the front end are longer than the extended limit panel and folding plate 1 of the back end.

The point -to -folding rod is obliquely corresponding to the folding board, and the point glue rod is located on the left, and the folding plate 2 is located on the right.

For the detailed structure of the fully automatic paste box machine, please consult the hotline: +86 13570431518
