Instructions for the structure principle of the charm box machine

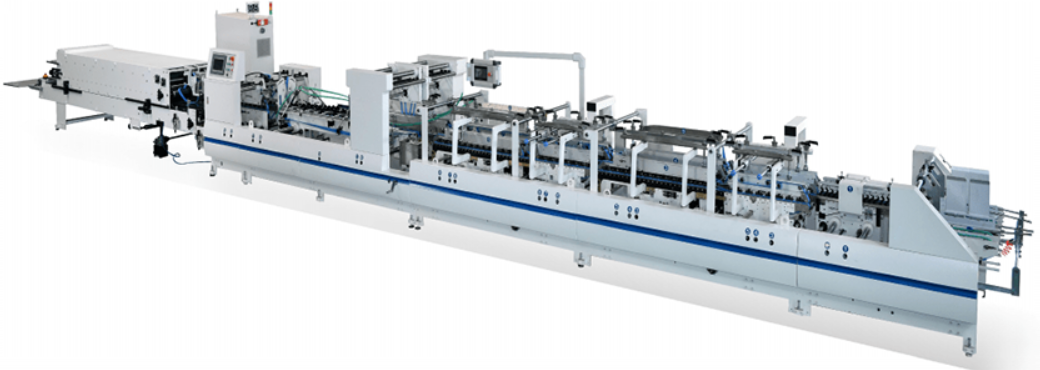

Intelligeent Multifunctional Trench Bottom Folder-Gluer is a higher-efficient and more energy-saving box equipment. The structure is reasonable and clever. It placed the bottom and glue process on the same device, reducing production costs, reduced accounting The area of the ground, improve the spatial utilization rate, and high practicality. Intelligeent multifunctional trench bottom folder-gluer specific structure principles are as follows:

Intelligent Multifunctional Trench Bottom Folder-Gluer structure contains the bottom plate, a transmission device on the upper plate, and a supporting platform on the upper side of the bottom plate. The side wall of the sliding box is fixed with connection board 1, the bottom fixing connection of the connection board 1 has a connection rod, the bottom side of the connector rod is fixed with colloid brush, the side wall of the sliding frame is fixed with the connection board, the connecting board is connected to the board, and the connecting board is connected to the board. There is a rod on the upper side.

First place the carton board on the right side of the conveyor belt, and then start the servo motor counterclockwise to move the handbelt parallel to the right side. At the same time, because the alien gear has half of the teeth and half of the setting is smooth, the counterclockwise starts on the servo motor on the counterclockwise motor on the servo motor. When the alien gear, when the alien gear has a teeth on one side and the left tooth plate, it will drive the sliding frame downward. When the alien gear has 3 meshing on the side of the tooth on the right side of the right side, it will drive the sliding frame to move upwards. Then rotate through the alien gear to drive the sliding frame on the fixed rod to move up and down, so that the rod and the colloidal brush can also be moved up and down. When the carton board moves to the middle position of the conveyor belt 1, the conversion rod will be reversed first. Make the side of the carton board fold at 90 degrees, and then move the carton board to the left, and then the colloid brush will be on the side wall of the folding carton board. The folding plate is flattened. At the same time, the side of the carton board is adhered to the glue to complete the bottom and glue of the carton board. After that, the carton board can be placed on the carton board to repeat continuous operation.
